Configure IP address and DNS settings

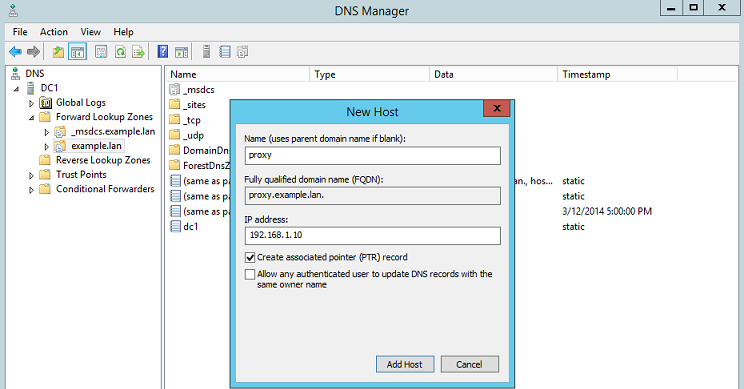

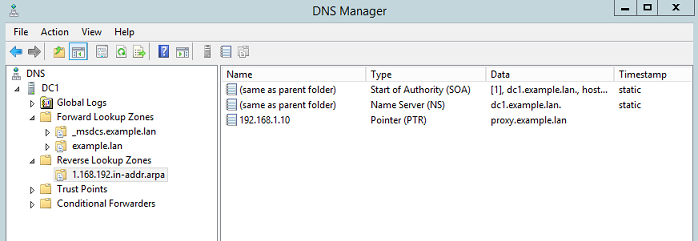

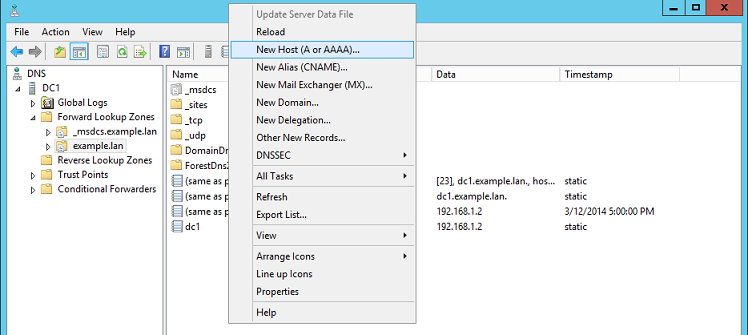

Create A and PTR records for proxy.example.lan on your DNS server. Make sure Windows workstations can resolve proxy.example.lan name to 192.168.1.10 and 192.168.1.10 can be reversely resolved to proxy.example.lan.

then

then

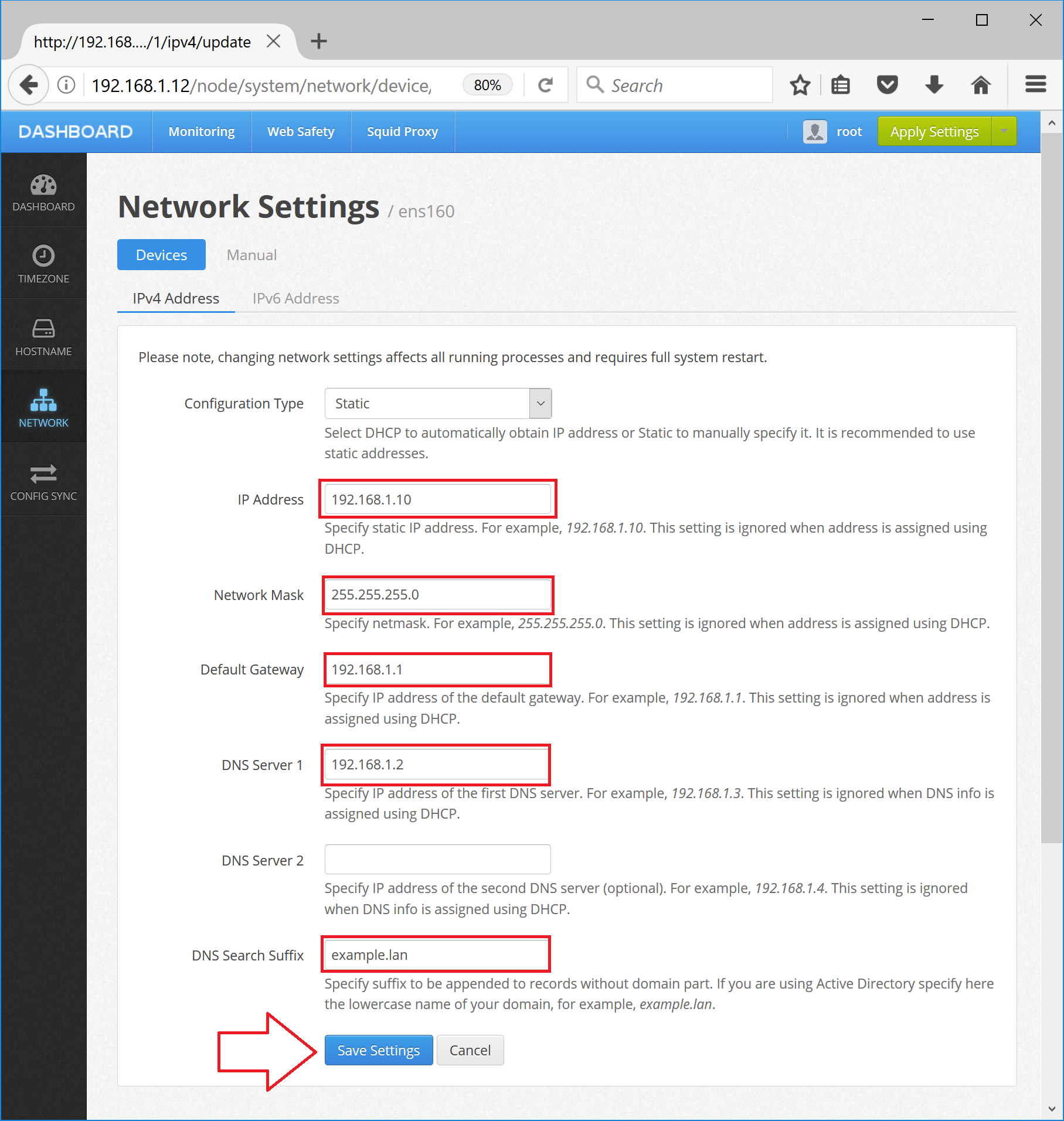

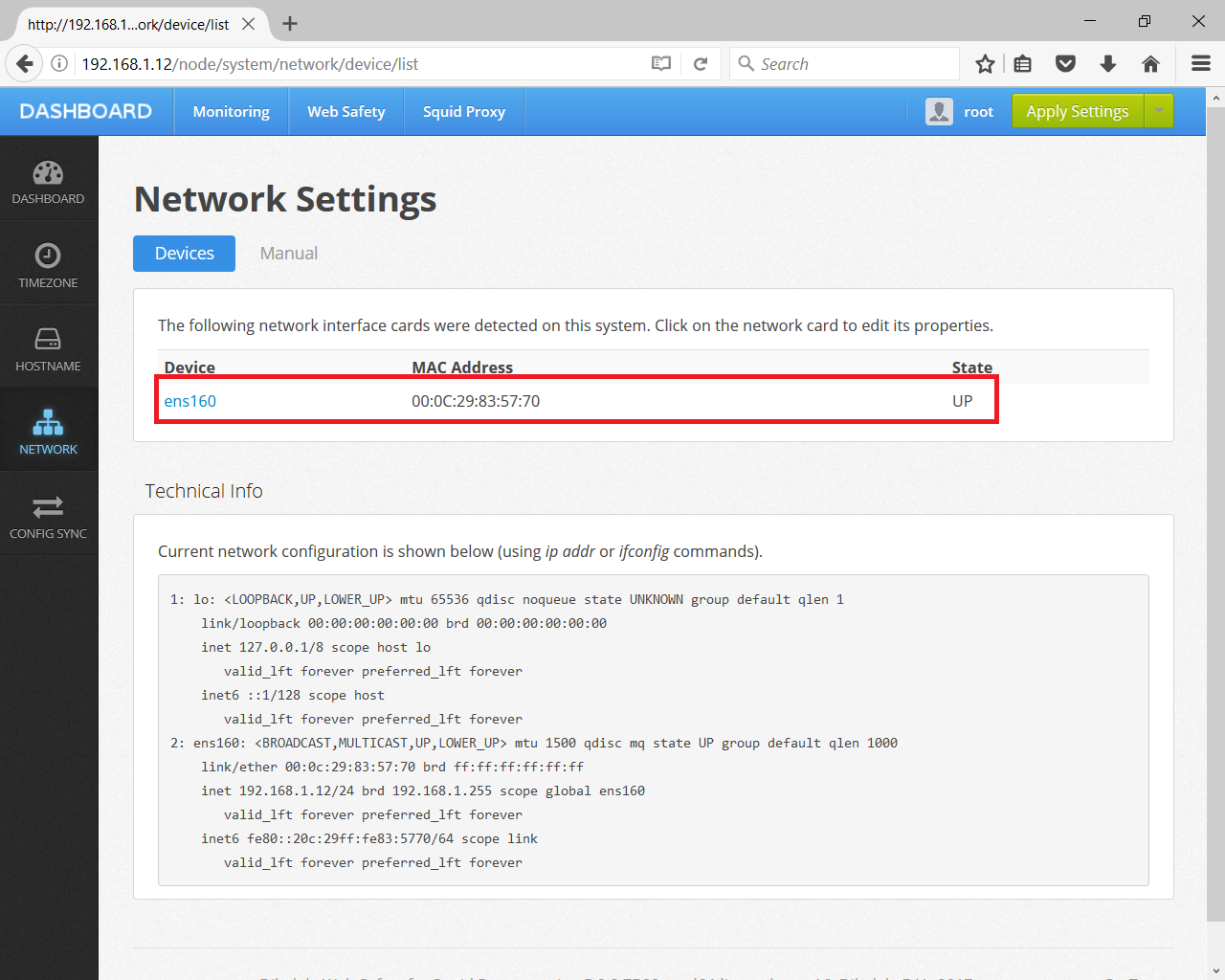

Your virtual appliance must be configured with static IP address, you can do it from Admin UI as indicated on the following screenshot or manually as explained in the documentation.

After you clicked Save Settings, Admin UI will automatically generate the /etc/netplan/00-installer-config.yaml with the following contents.

network:
  ethernets:
    ens160:
      addresses:
      - 192.168.1.10/24
      gateway4: 192.168.1.1
      nameservers:
        addresses:
        - 192.168.1.2
        search:
        - example.lan
  renderer: networkd
  version: 2

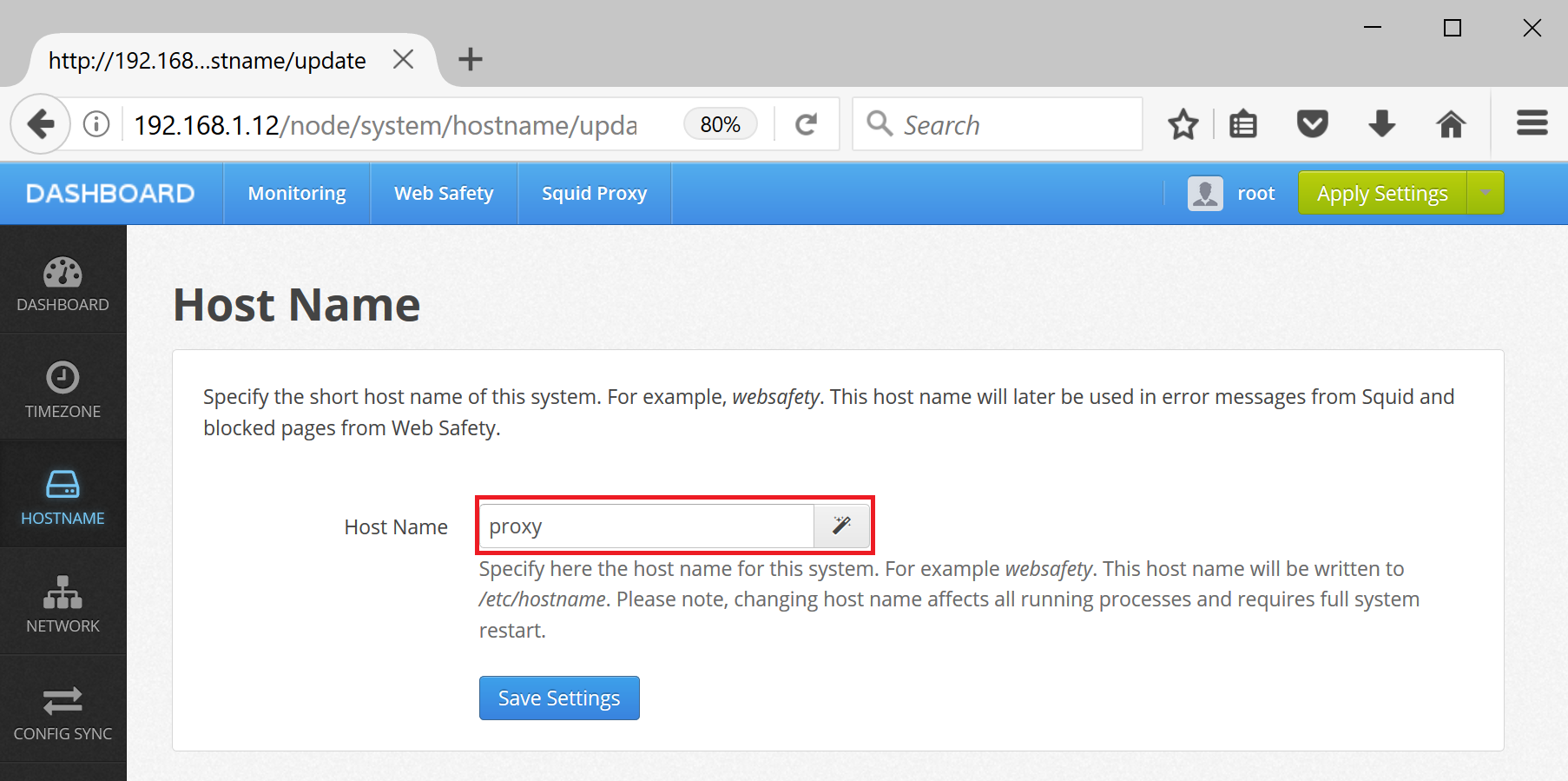

Next, set host name of your proxy from Admin UI as indicated on the following screenshot or by editing the /etc/hostname file to contain a single word proxy.

Set DNS reverse resolve setting on your proxy by editing /etc/hosts to look like the following.

127.0.0.1       localhost
192.168.1.10    proxy.example.lan proxy

# The following lines are desirable for IPv6 capable hosts
::1     localhost ip6-localhost ip6-loopback
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters

Reboot your proxy and after restart, check the output of hostname -f command; it should give proxy.example.lan.

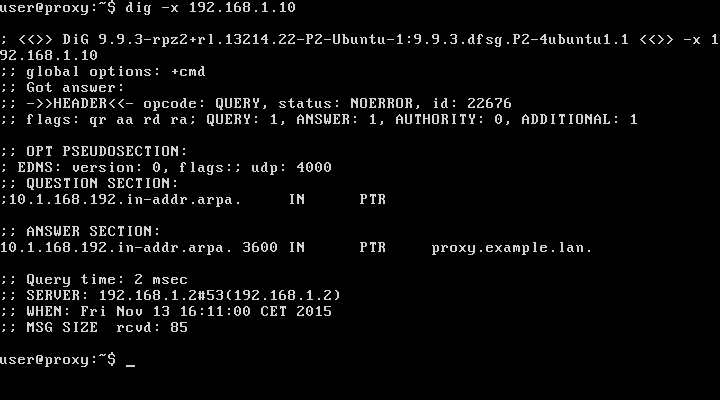

Now check you can resolve domain names on proxy by running the following commands. Output from these commands should contain correct IP addresses and fully qualified domain names for proxy.example.lan and dc1.example.lan.

dig dc1.example.lan
dig -x 192.168.1.2
dig proxy.example.lan
dig -x 192.168.1.10

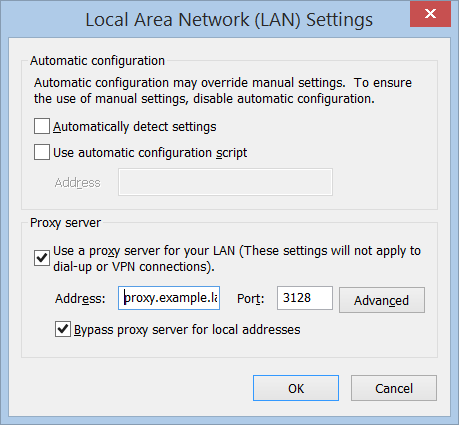

Specify proxy.example.lan (as FQDN and not as IP address!!!) in your browser settings on all your workstation machines. Try browsing to see if the appliance works nicely without authentication.
