Check Proxy Authentication

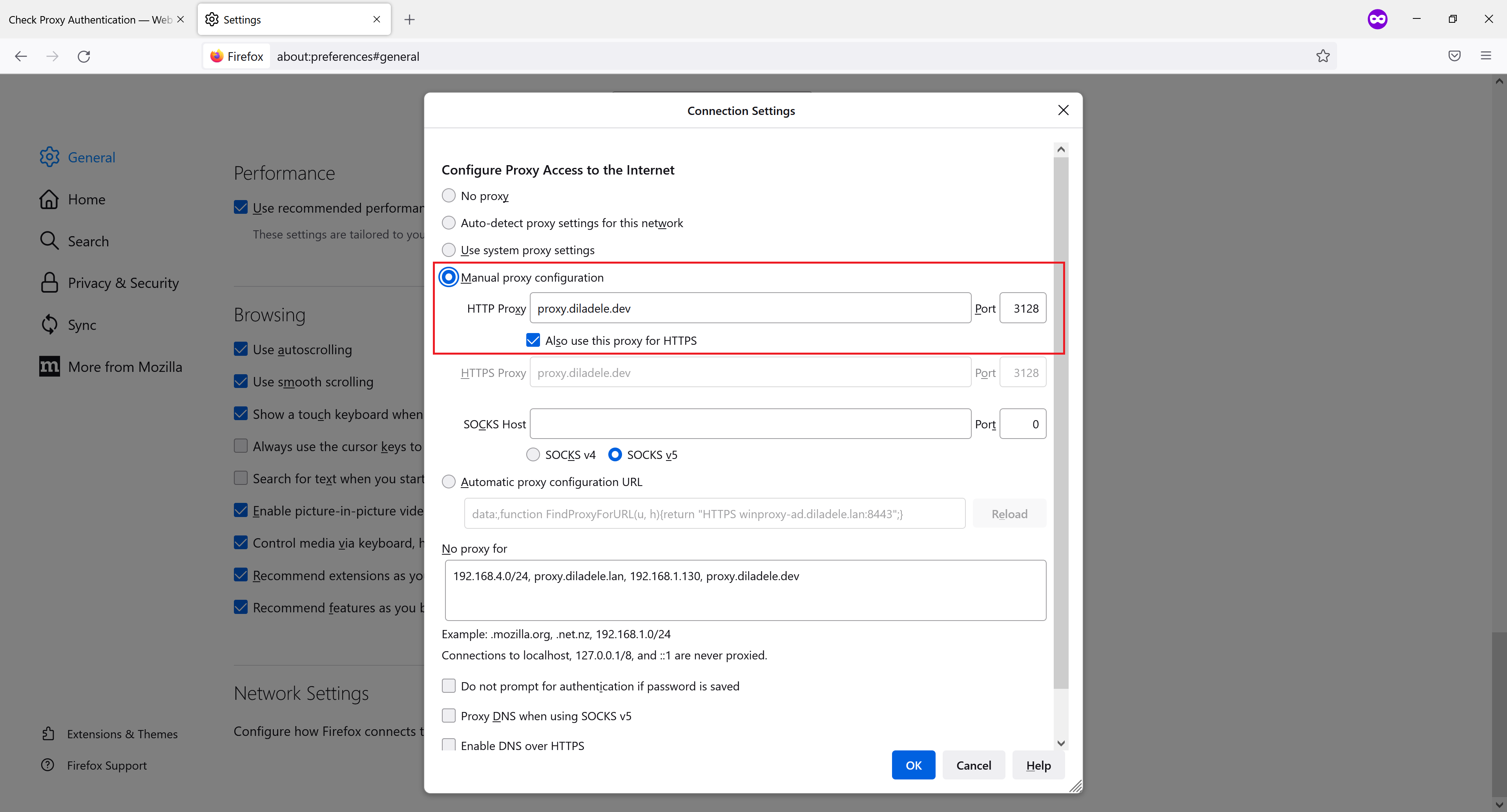

To check if our Google Workspace authentication works correctly, configure your browser to use your proxy on proxy.diladele.dev port 3128 (adjust for your proxy name of course) and navigate to some URL.

browser_uses_proxy

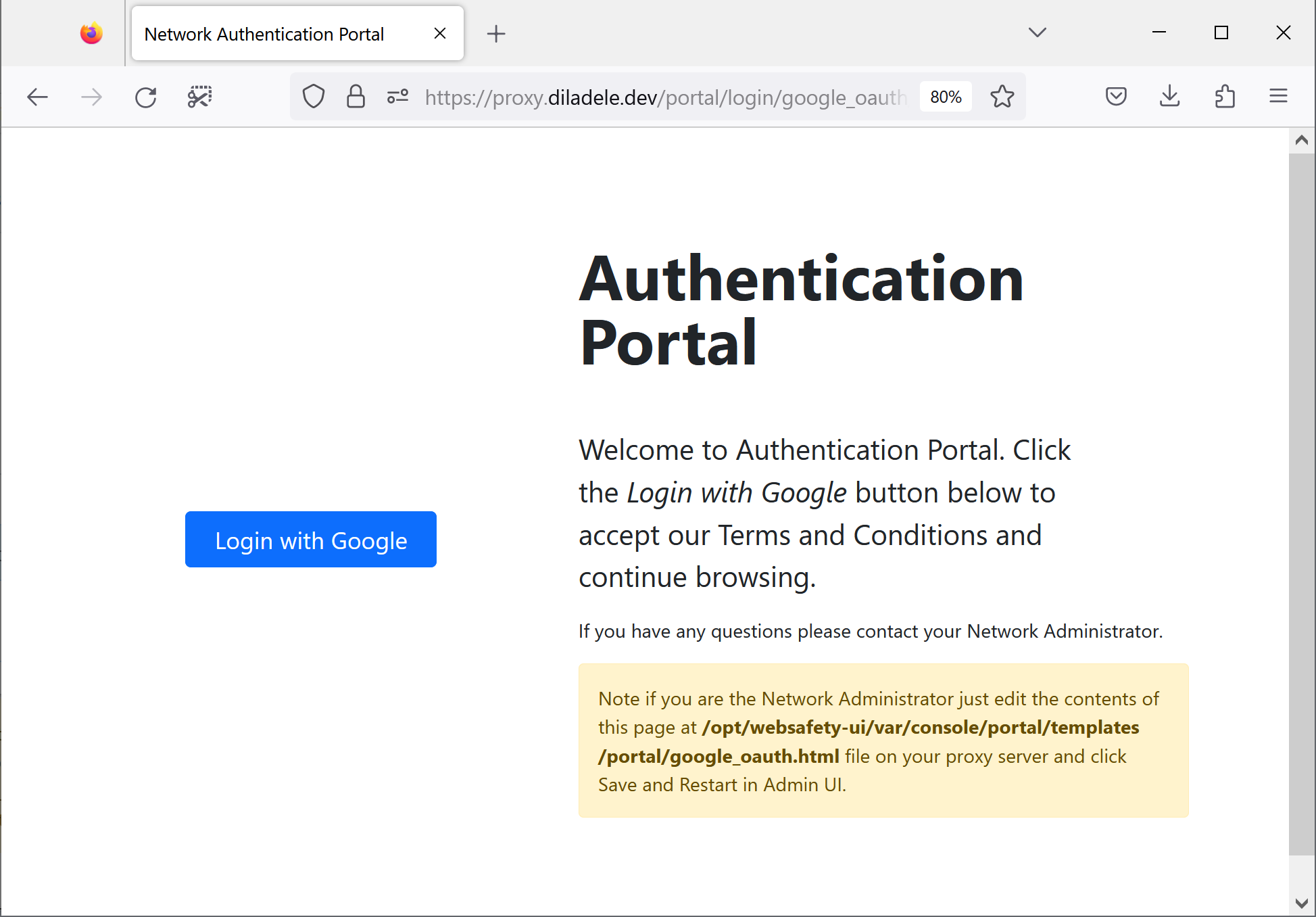

Captive Portal will show the Login with Google button as shown on the next screenshot.

browser_redirected

After the user clicks on that button, he should be redirected to Google authentication page.

permissions_requested

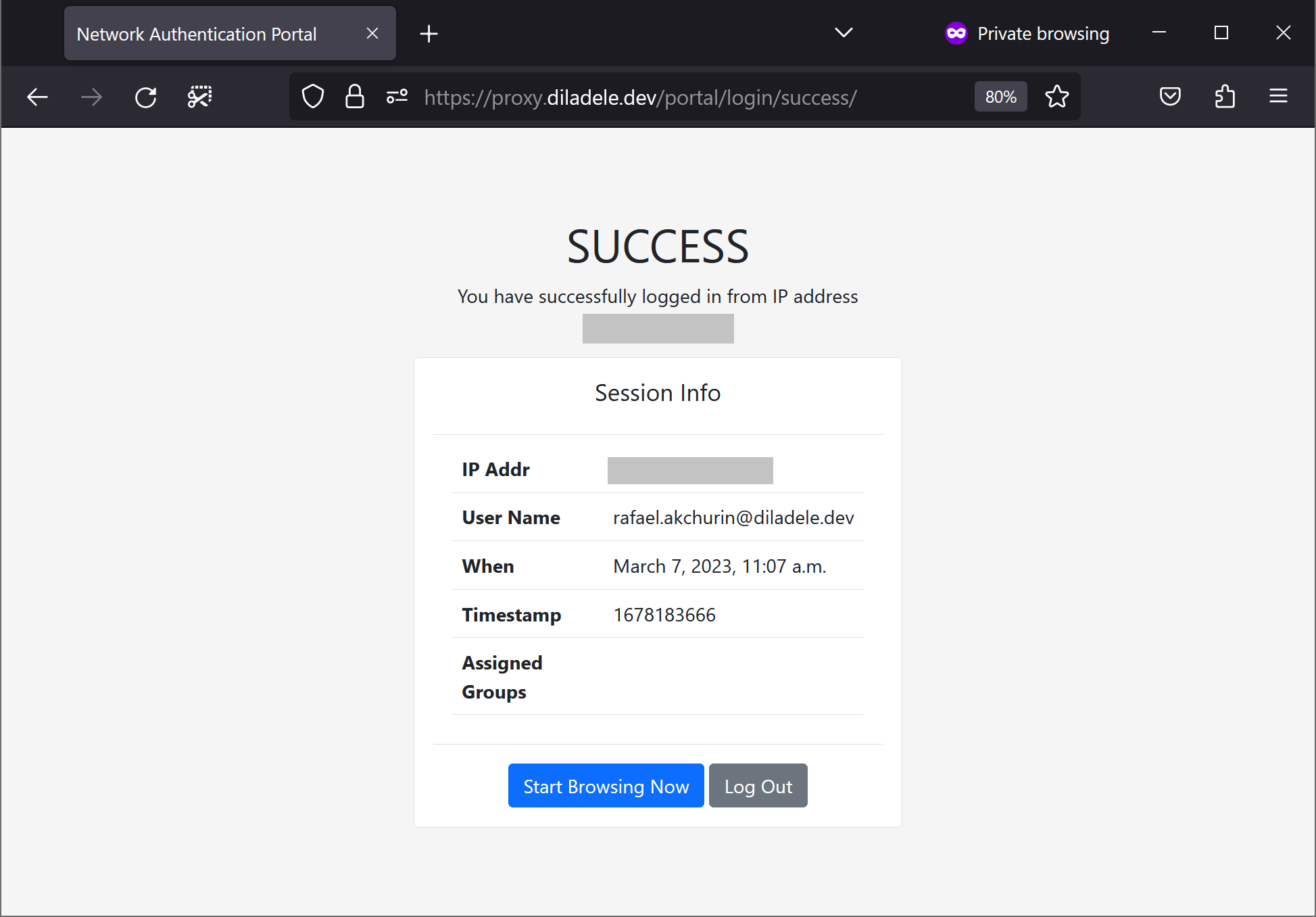

After authentication user is presented with Success message.

login_success

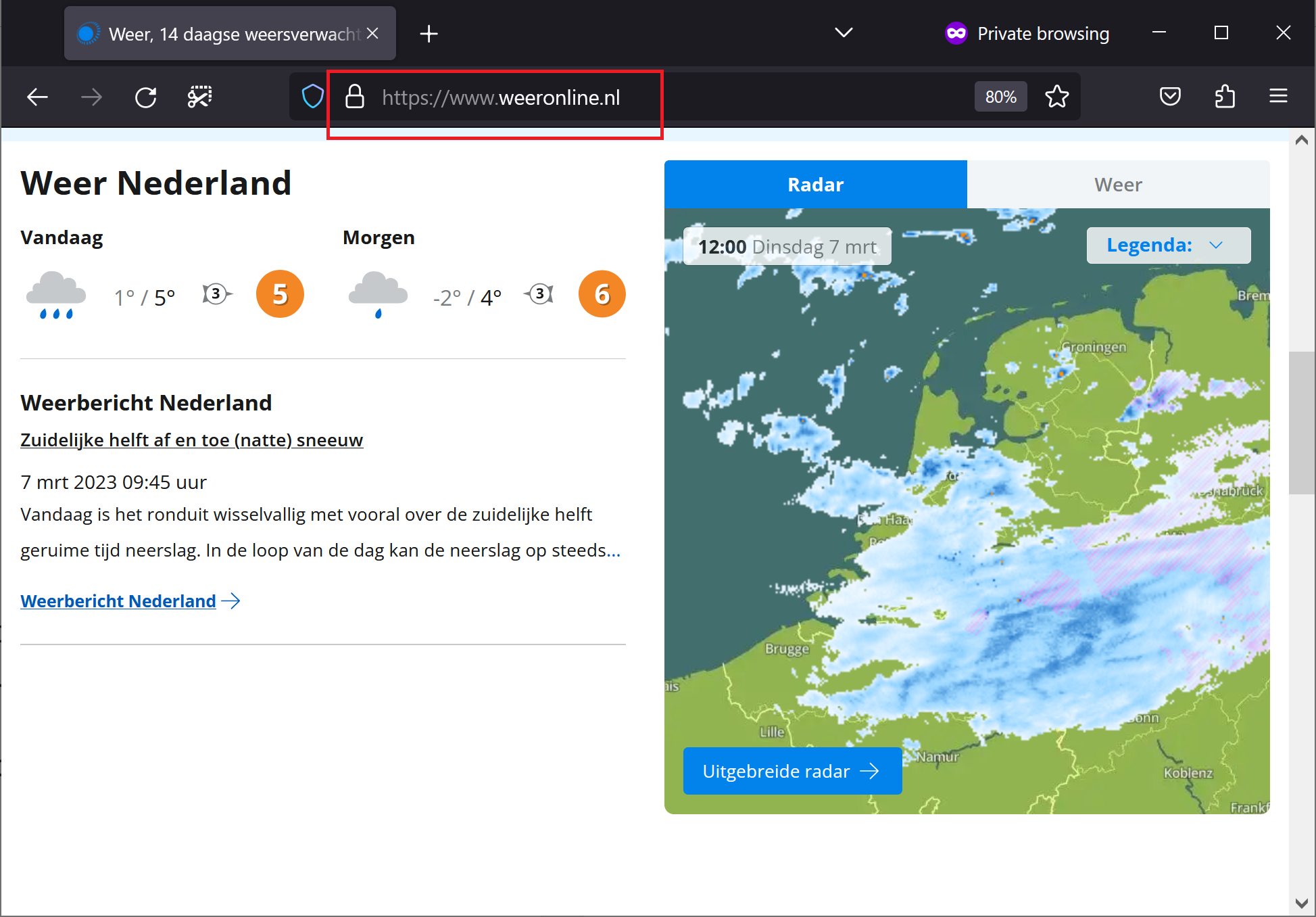

When browsing to sites on the Internet as shown on the following screenshot.

user_browsing

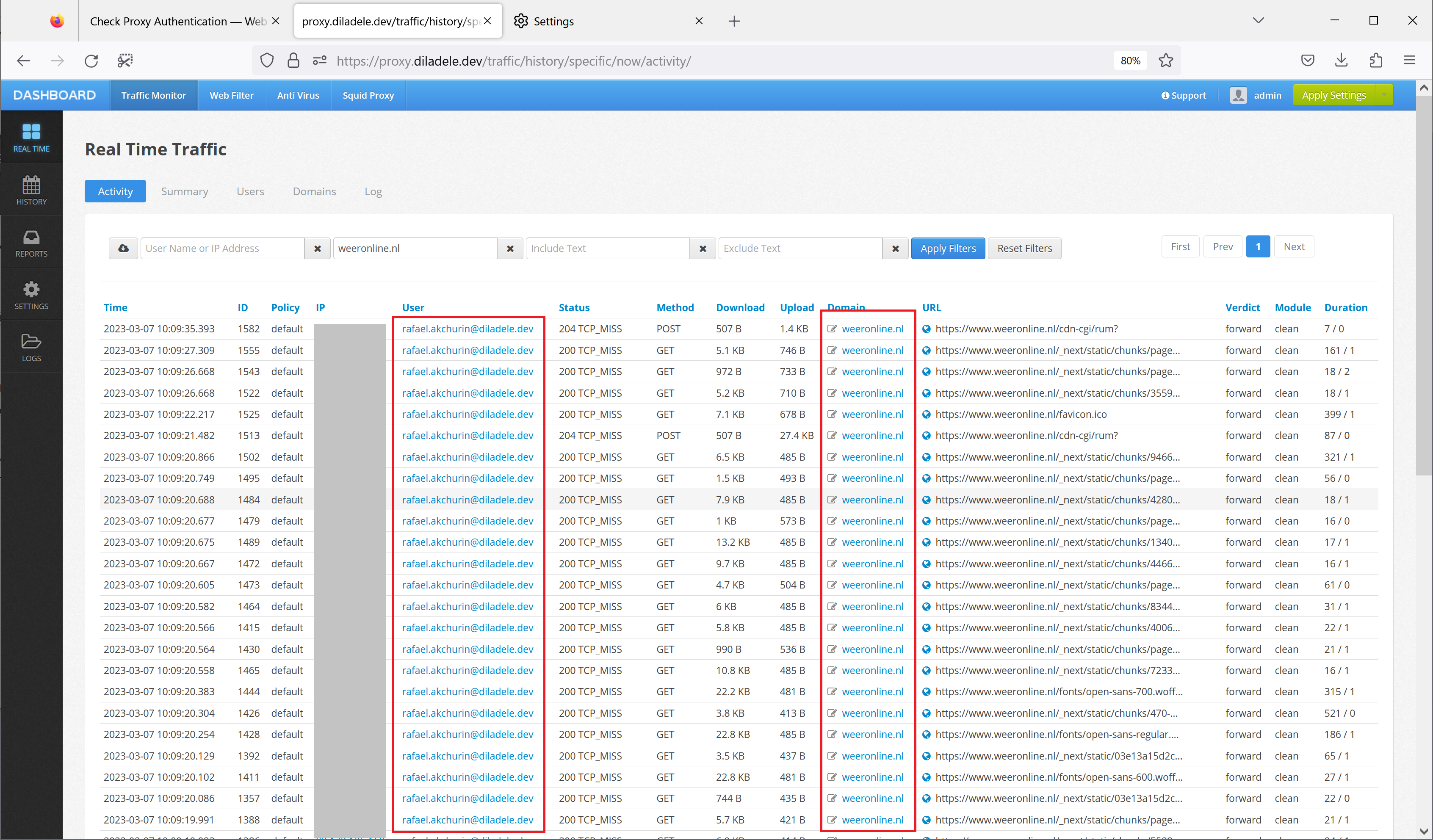

The Admin UI will use the authenticated user name from Google Workspace in web filtering policies, traffic monitoring and reporting.

username_visible

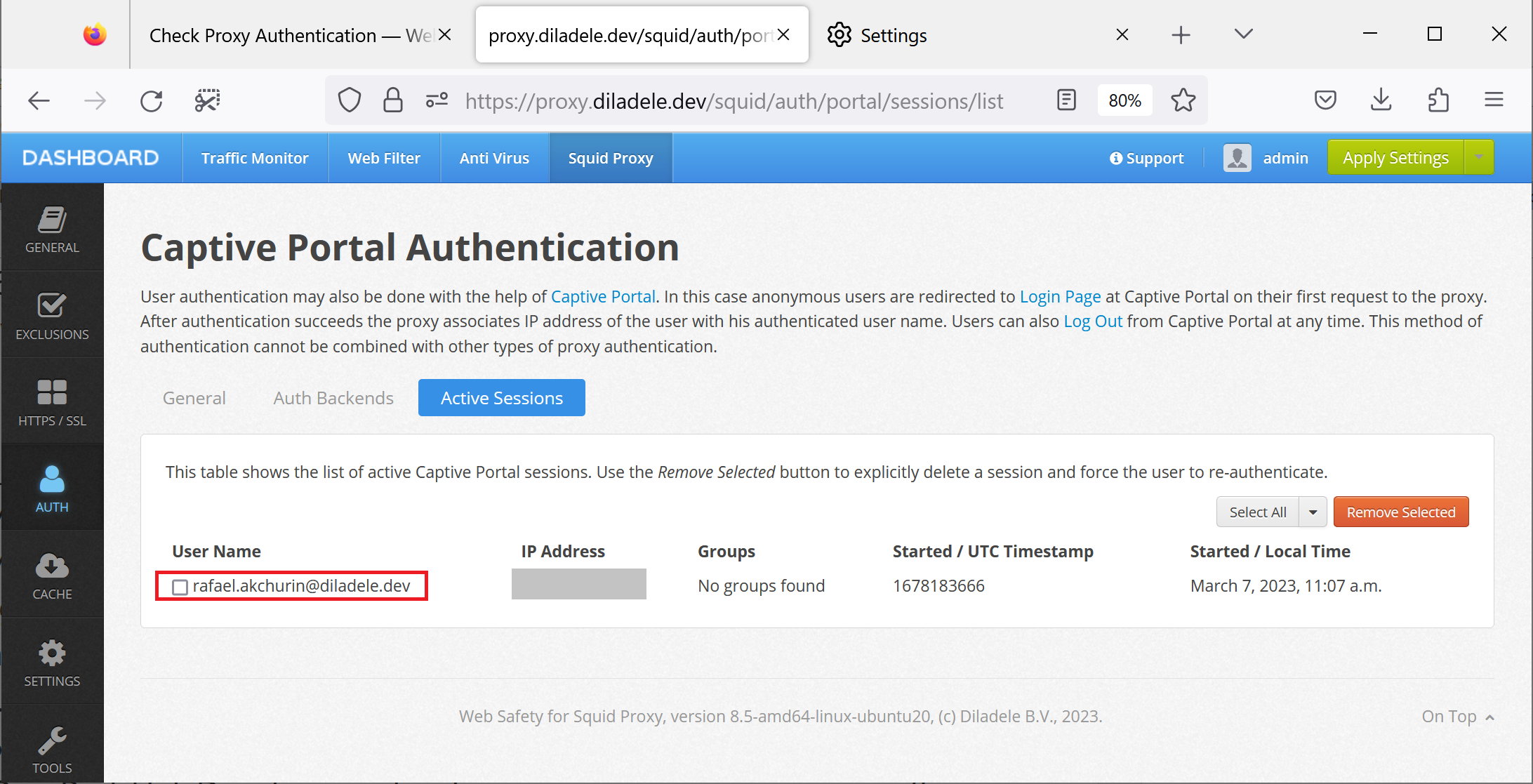

Session of the user will also be visible in Squid / Auth / Captive Portal / Active Sessions.

session_visible
